Bartels :: Bartels AutoEngineer :: BAE Product Info :: BAE V6.2 Highlights

Bartels AutoEngineer®

Bartels AutoEngineer®
Version 6.2
Highlights

PDF Version (270 KB; updated 24 October 2008)

Contents

Element Processing History with Load Function
Macro Generator
Mathematical Expressions in Numeric Dialog Input Fields
Windows/Motif Pulldown Menus with Shortcut Key Display
SCM Connection Pattern Generator
Polygon Dash Mode Settings Dialog in SCM and Layout
Layout Toolbar with Buttons for Preference Layer Selection and Signal Layer Color Assignment
Reference Line Display whilst Moving Layout Part Name and/or Attribute
Highlight Focus to display highlighted/erroneous SCM and/or Layout Elements exclusively
Online Trace Length Display during Manual Routing
Programming EPS/PDF Output Configurations
Programming CAM Batch Output Configurations
BAE HighEnd: Layout Layer Stackup Definition, e.g. for Impedance Calculations

Element Processing History with Load Function

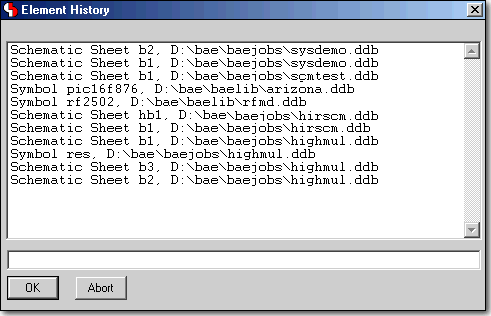

BAE Version 6.2: Schematic Editor Dialog - Element History

Macro Generator

BAE Version 6.2: Layout Editor Dialog - Macro Command Definition

Mathematical Expressions in Numeric Dialog Input Fields

Formula Input...

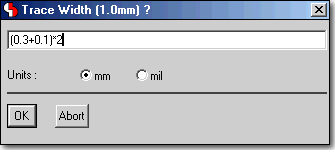

BAE Version 6.2: Layout Editor Dialog - Trace Width - Formula Input
...is automatically calculated

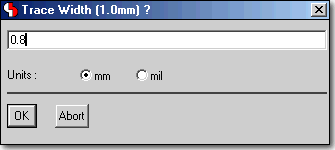

BAE Version 6.2: Layout Editor Dialog - Trace Width - Numeric Input

Windows/Motif Pulldown Menus with Shortcut Key Display

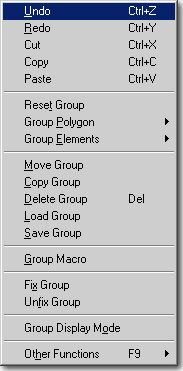

BAE Version 6.2: Layout Editor Menu - Edit

SCM Connection Pattern Generator

BAE Version 6.2: Schematic Editor Dialog - Connecdtion Patterns
BAE Version 6.2: Schematic Editor - Connection Pattern Generation

Polygon Dash Mode Settings Dialog in SCM and Layout

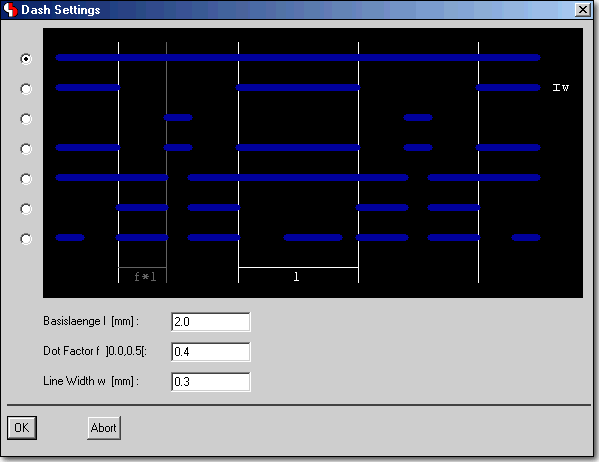

BAE Version 6.2: Layout Editor Dialog - Dash Settings

Layout Toolbar with Buttons for Preference Layer Selection and Signal Layer Color Assignment

BAE Version 6.2: Layout Editor Toolbar with Buttons for Preference Layer Selection and Signal Layer Color Assignment

Reference Line Display whilst Moving Layout Part Name and/or Attribute

BAE Version 6.2: Layout Editor - Parts / Move Name -

Highlight Focus to display highlighted/erroneous SCM and/or Layout Elements exclusively

Highligh Focus Off

BAE Version 6.2: Layout - Highligh Focus Off
Highlight Focus On

BAE Version 6.2: Layout - Highligh Focus On

Online Trace Length Display during Manual Routing

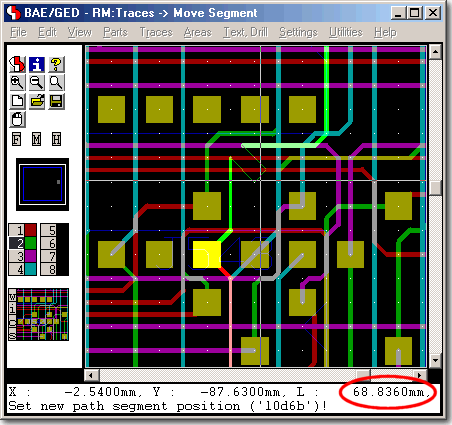

BAE Version 6.2: Layout Editor - Traces / Move Segment - Trace Length Display

Programming EPS/PDF Output Configurations

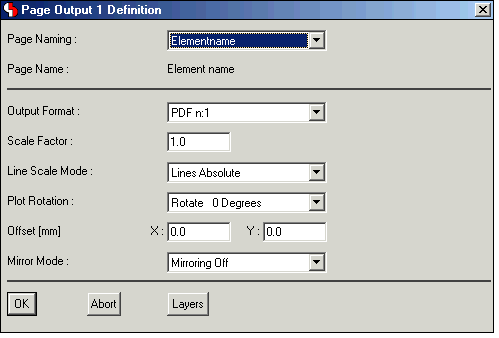

BAE Version 6.2: CAM Processor Dialog - EPS/PDF Batch - Page Output Definition

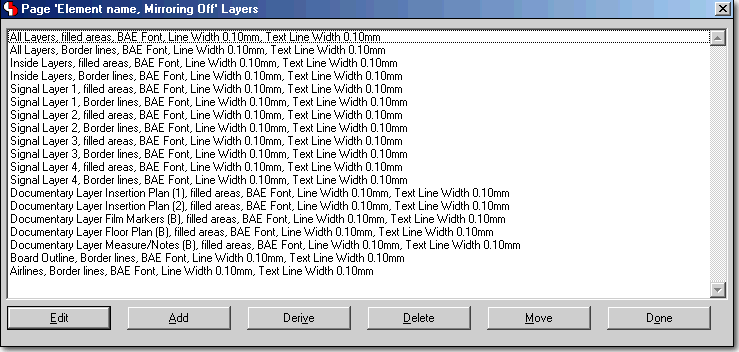

BAE Version 6.2: CAM Processor Dialog - EPS/PDF Batch - Page-specific Output Layer Configuration

Programming CAM Batch Output Configurations

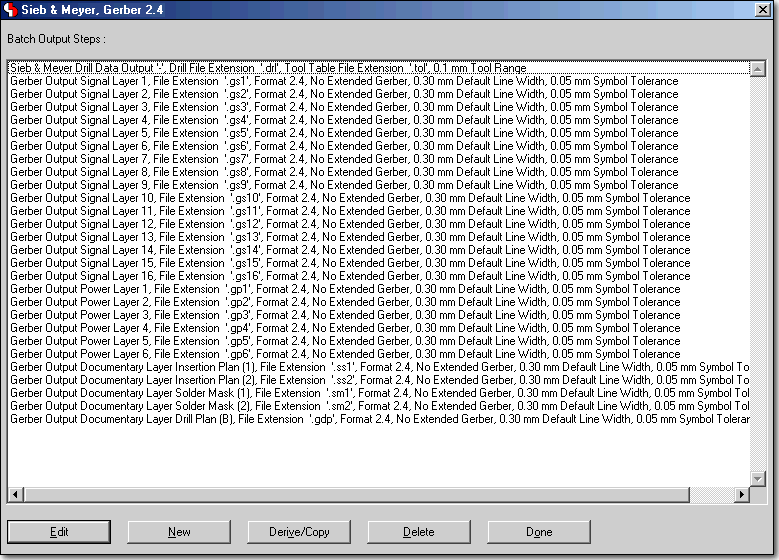

BAE Version 6.2: CAM Processor Dialog - CAM Batch - Output Steps Configuration

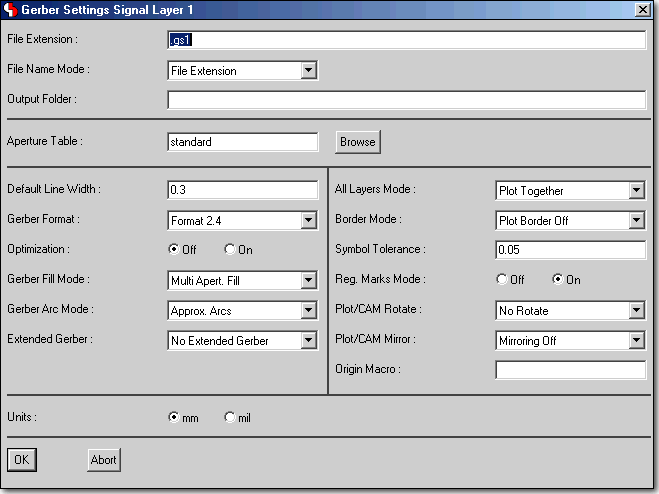

BAE Version 6.2: CAM Processor Dialog - CAM Batch - Layer-specific Gerber Parameter Settings

BAE HighEnd: Layout Layer Stackup Definition, e.g. for Impedance Calculations

BAE Version 6.2: BAE HighEnd Layout Editor Dialog - Layer Stackup

Related Topics
