Version 6.6
Highlights

PDF Version (314 KB; updated 24 October 2008)

Contents

Element Selection with Comment and Date Display
Symbol Logic Editor with interactive Pin Assignment
Automatic Bus Definition for Symbol Bus Pin Connections
Symbol Database with Symbol Preview
Symbol Context Menus programmable through Symbol Library Definitions
Toolbar Text Placement Function with Text/System Attribute List
Warnings issued when connecting named Nets
Toolbar with Element Access History and Preference Layer Display
Horizontal/Vertical Measuring Function
Trace Antenna Recognition
Element Manipulation Dialogs through p Key
Autorouter with improved SMD Pin Routing Algorithms
PDF Output with Layer Info (for Adobe Reader 6+)
Dialog for Net Group DRC Assignments (BAE HighEnd)

Element Selection with Comment and Date Display

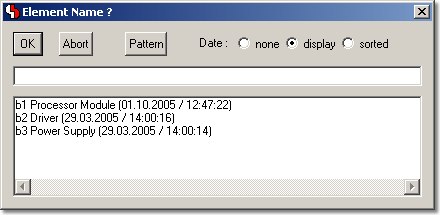

BAE Version 6.6: Schematic Editor Dialog - Element Selection

Symbol Logic Editor with interactive Pin Assignment

Pin Assignments Table

BAE Version 6.6: Schematic Editor - Edit Symbol Logic: Pin Assignments Table
Pin Assignments graphically

BAE Version 6.6: Schematic Editor - Edit Symbol Logic: Pin Assignments graphically

Automatic Bus Definition for Symbol Bus Pin Connections

BAE Version 6.6: Schematic Editor - Connections: Bus Connection to Symbol Bus Pins

Symbol Database with Symbol Preview

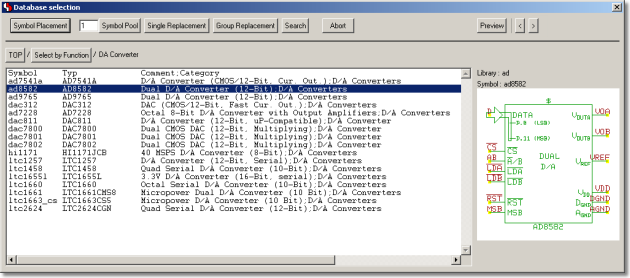

BAE Version 6.6: Schematic Editor: Symbol Database with Symbol Preview

Symbol Context Menus programmable through Symbol Library Definitions

BAE Version 6.6: Schematic Editor: Symbol Context Menus programmable through Symbol Library Definitions

Toolbar Text Placement Function with Text/System Attribute List

BAE Version 6.6: Schematic Editor - Toolbar - Add Text: Toolbar Text Placement Function with Text/System Attribute List

Warnings issued when connecting named Nets

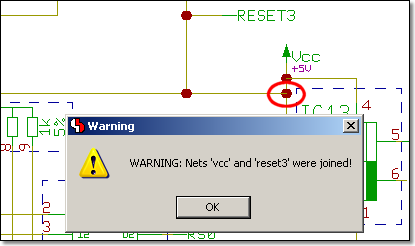

BAE Version 6.6: Schematic Editor - Connections: Warnings issued when connecting named Nets

Toolbar with Element Access History and Preference Layer Display

BAE Version 6.6: Layout Editor - Toolbar: Element Access History and Preference Layer Display

Horizontal/Vertical Measuring Function

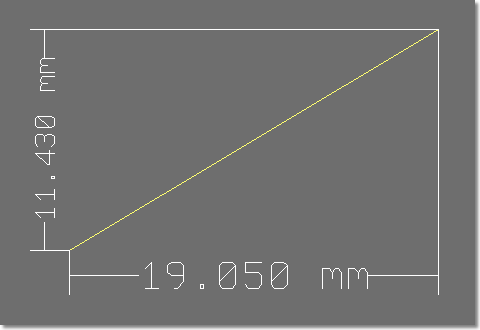

BAE Version 6.6: Layout Editor - Drawing Utilities: Horizontal/Vertical Measuring Function

Trace Antenna Recognition

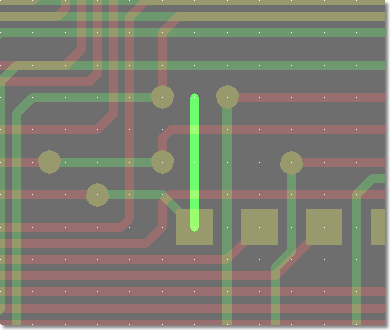

BAE Version 6.6: Layout Editor: Trace Antenna Recognition/Highlight

Element Manipulation Dialogs through p Key

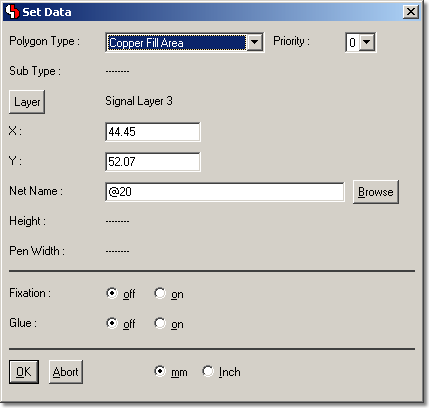

BAE Version 6.6: Layout Editor - Copper Fill Area: Element Manipulation Dialog

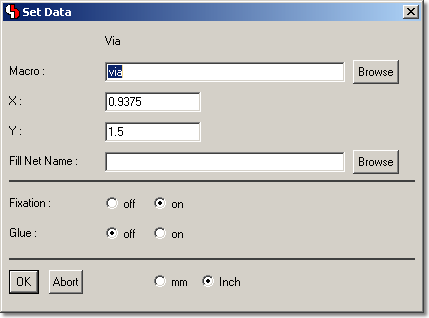

BAE Version 6.6: Layout Editor - Via: Element Manipulation Dialog

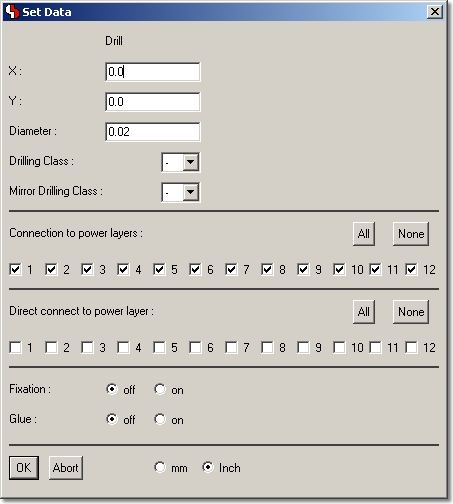

BAE Version 6.6: Layout Editor - Drill Hole: Element Manipulation Dialog

Autorouter with improved SMD Pin Routing Algorithms

SMD Pin Routing prior to BAE V6.6

BAE Version 6.6: Autorouter - SMD Pin Routing prior to BAE V6.6
SMD Pin Routing in BAE V6.6

BAE Version 6.6: Autorouter - SMD Pin Routing in BAE V6.6

PDF Output with Layer Info (for Adobe Reader 6+)

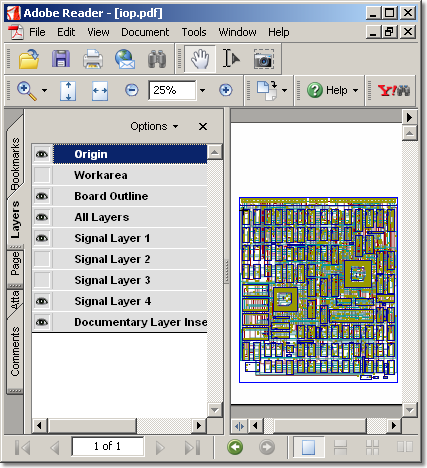

BAE Version 6.6: Layout - PDF Output with Layer Info (for Adobe Reader 6+)

Dialog for Net Group DRC Assignments (BAE HighEnd)

BAE Version 6.6: Layout Editor - Dialog for Net Group DRC Assignments (BAE HighEnd)
